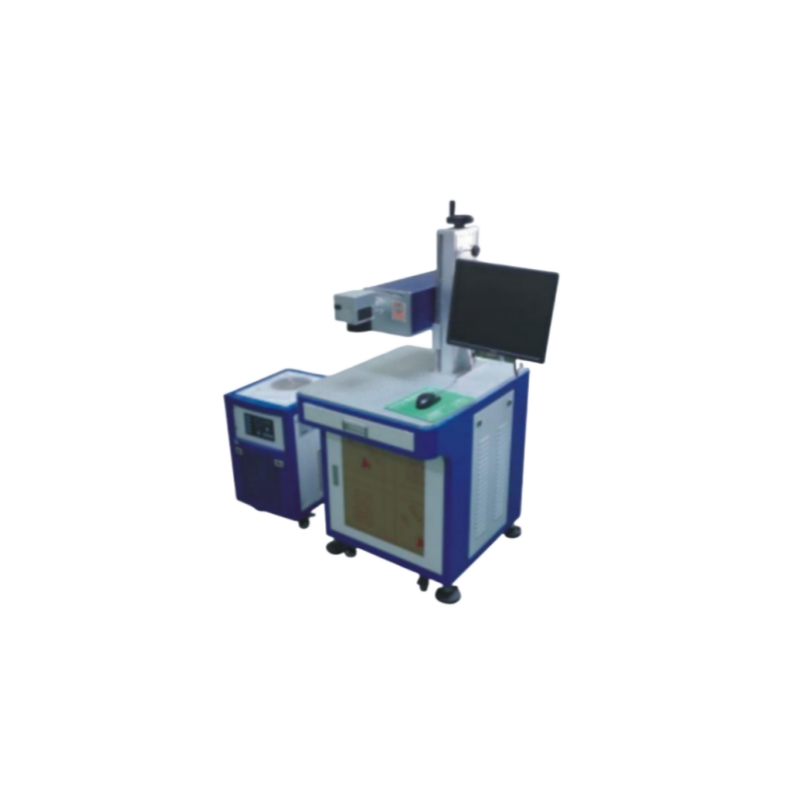

产品名称:緑光紫外激光打標機HUL系列 |
![]() |
紫外激光打標機適用範圈大,不會有熱效應,材料不變形不燒焦,標記速度快,效率高。整機性能穩定,體積小,功耗低;可與生産流水綫配合,自動上下料,自動進出料;適合在絶大多數金属和非金屬材料上打標。
Uv laser marking machine applicable scope is bigthere will be no heating effectmaterial deformation is not burnedmarking speed,high efficiency.
The machine performance is stable,small size,low power consumption;Cooperate with production line automatic up-down material,feeding and discharge automatically;Suitable for most On the metal and nonmetal materials.
適用行業Applicableindustries
激光功率 Laser power 3W/5W/8W/15W
激光重復频率 Laser pulse frequency <60KHz
激光波長 Length of laser wave 355nm
打標範圍 Marking scope 50x50/100x100/175x175
最小綫寬 Min line width 50μm
最小字符 Min character ≥0.1mm
打標速度 Marker speed ≤7000mm/s
重復精度 Repeat precision ±0.01mm
指示激光 Laser diode pointer LD绿光:<5mw
電力需求 Power supply 220V/50KHz/15A
總功率 Gross power <2.5KW
工作温度 Operatingtemperature 10℃-35℃
冷却方式 Cooling style 高精度恒温/循環水冷High precision constant temperature/water cooling
整機重量 Net weight 225Kg
外形尺寸 Dimension 1240x530x1370mm
Uv laser marking machine applicable scope is bigthere will be no heating effectmaterial deformation is not burnedmarking speed,high efficiency.
The machine performance is stable,small size,low power consumption;Cooperate with production line automatic up-down material,feeding and discharge automatically;Suitable for most On the metal and nonmetal materials.
適用行業Applicableindustries
紫外激光打標機以其獨特的小功率激光束爲主,特别適應于:超精细加工的高端市場,如化妆品、藥品、食品及其他高分子材料的包装瓶表面打標,效果精细,標記清洗牢固,優于油墨喷碼且無污染:LCD液晶玻璃二维碼打標、玻璃器具表面打孔、金屬表面鍍層打標、塑膠按鍵、电子元件、禮品、通訊器材、建築材料等等;柔性PCB板打標;硅晶圆片微孔、盲孔加工;
激光功率 Laser power 3W/5W/8W/15W
激光重復频率 Laser pulse frequency <60KHz
激光波長 Length of laser wave 355nm
打標範圍 Marking scope 50x50/100x100/175x175
最小綫寬 Min line width 50μm
最小字符 Min character ≥0.1mm
打標速度 Marker speed ≤7000mm/s
重復精度 Repeat precision ±0.01mm
指示激光 Laser diode pointer LD绿光:<5mw
電力需求 Power supply 220V/50KHz/15A
總功率 Gross power <2.5KW
工作温度 Operatingtemperature 10℃-35℃
冷却方式 Cooling style 高精度恒温/循環水冷High precision constant temperature/water cooling
整機重量 Net weight 225Kg
外形尺寸 Dimension 1240x530x1370mm
